Ready-to-build console designs with complete cutting lists and assembly documentation. Choose a configuration, download the plans, and take them straight to the cut shop.
Available Designs

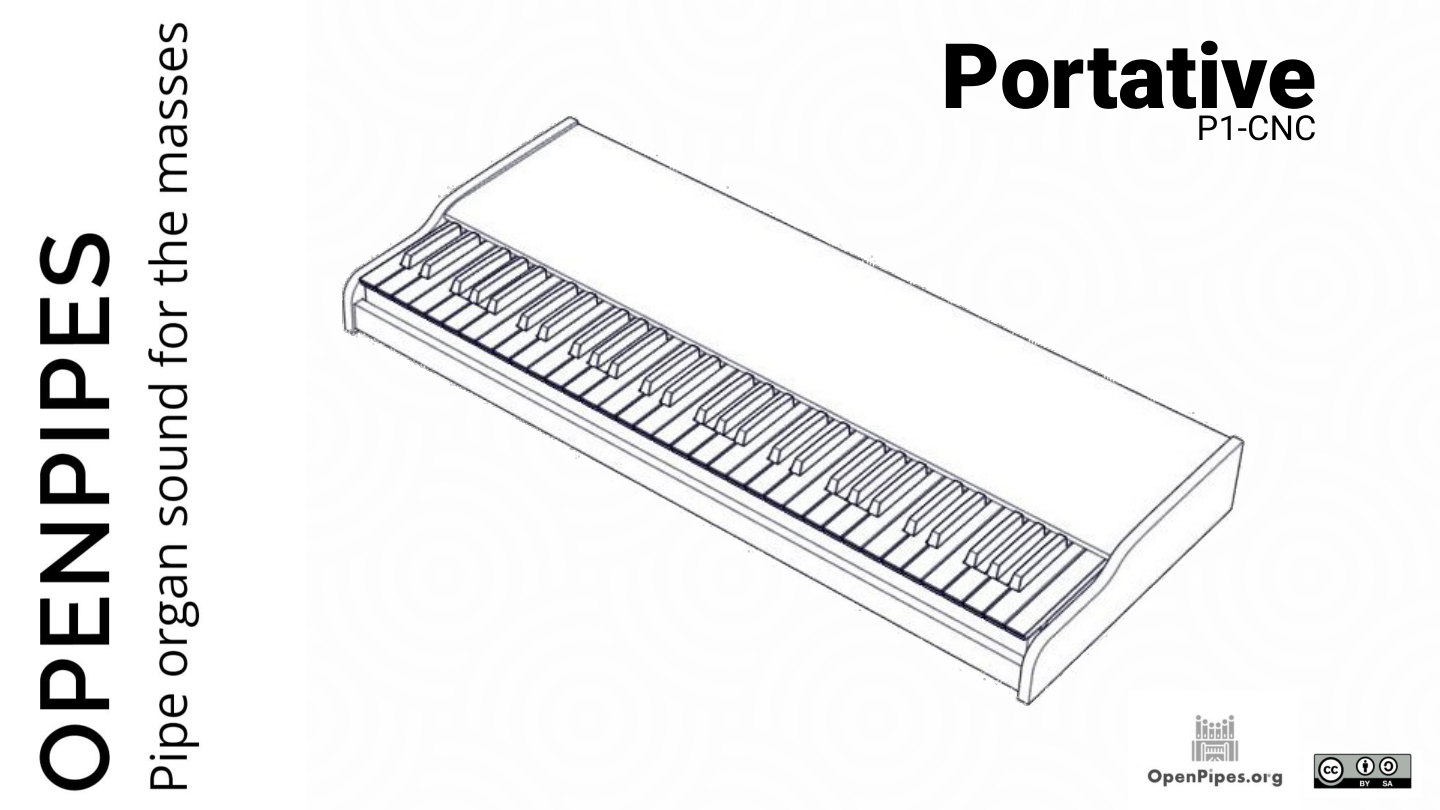

P1 Simple
A portable organ optimized for CNC machines. Single manual, compact footprint, ideal for getting started quickly.
View plan →

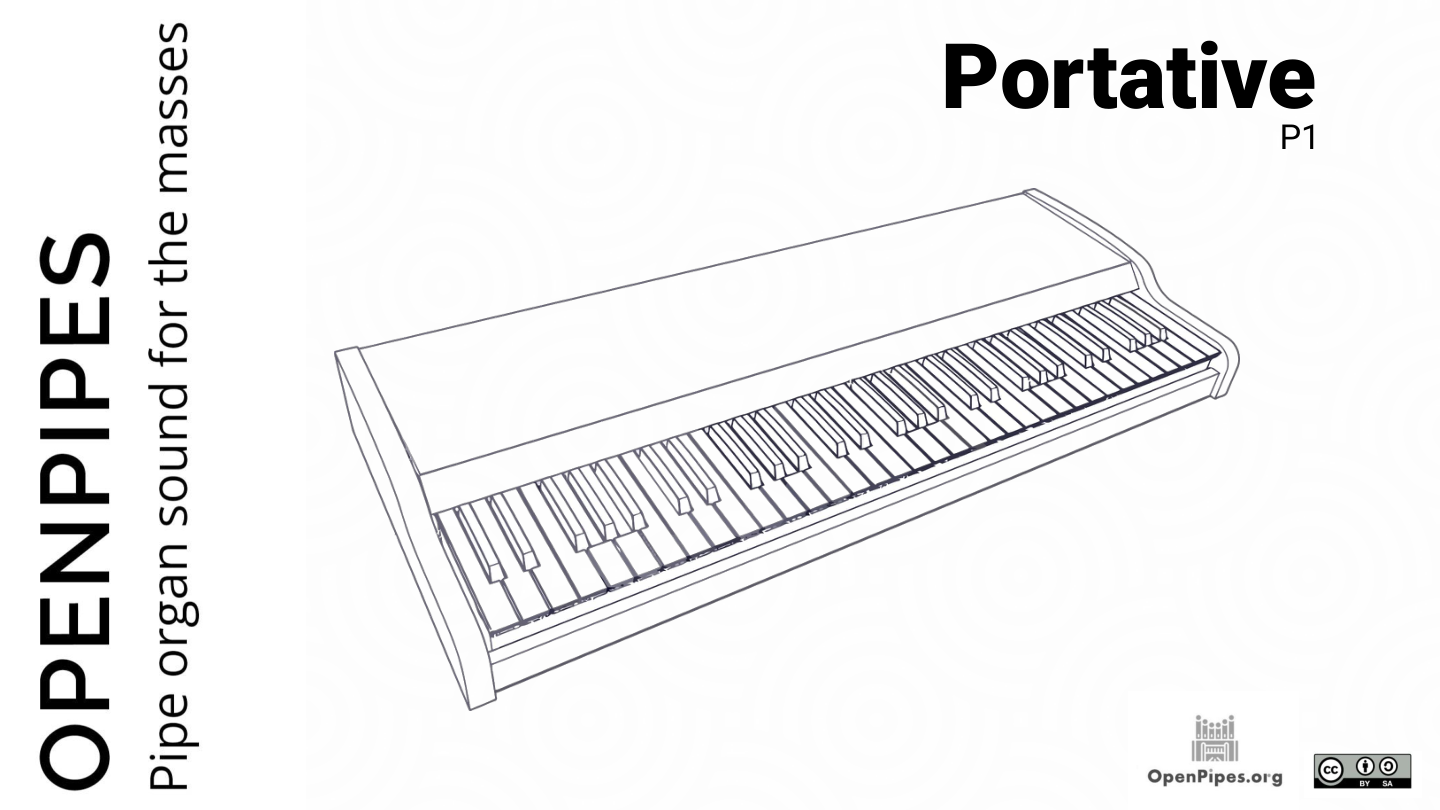

Portative (P1)
A more artisanal portative organ. Single manual, designed for traditional woodworking methods and easy transport.
View plan →

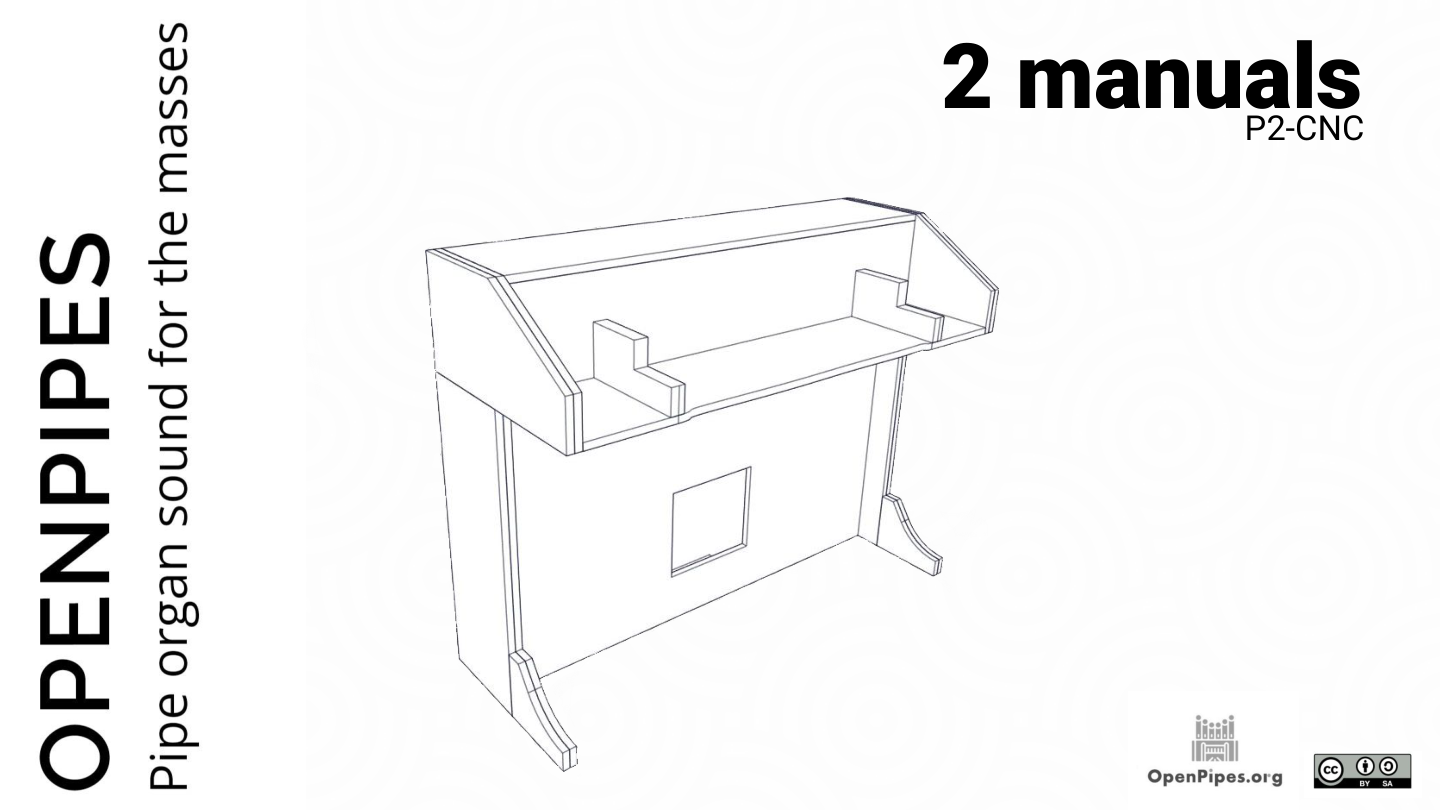

2 Manuals (P2-CNC)
Full two-manual console with room for a complete set of stop controls and expression pedals. Ideal for church installations or dedicated practice rooms.
View plan →

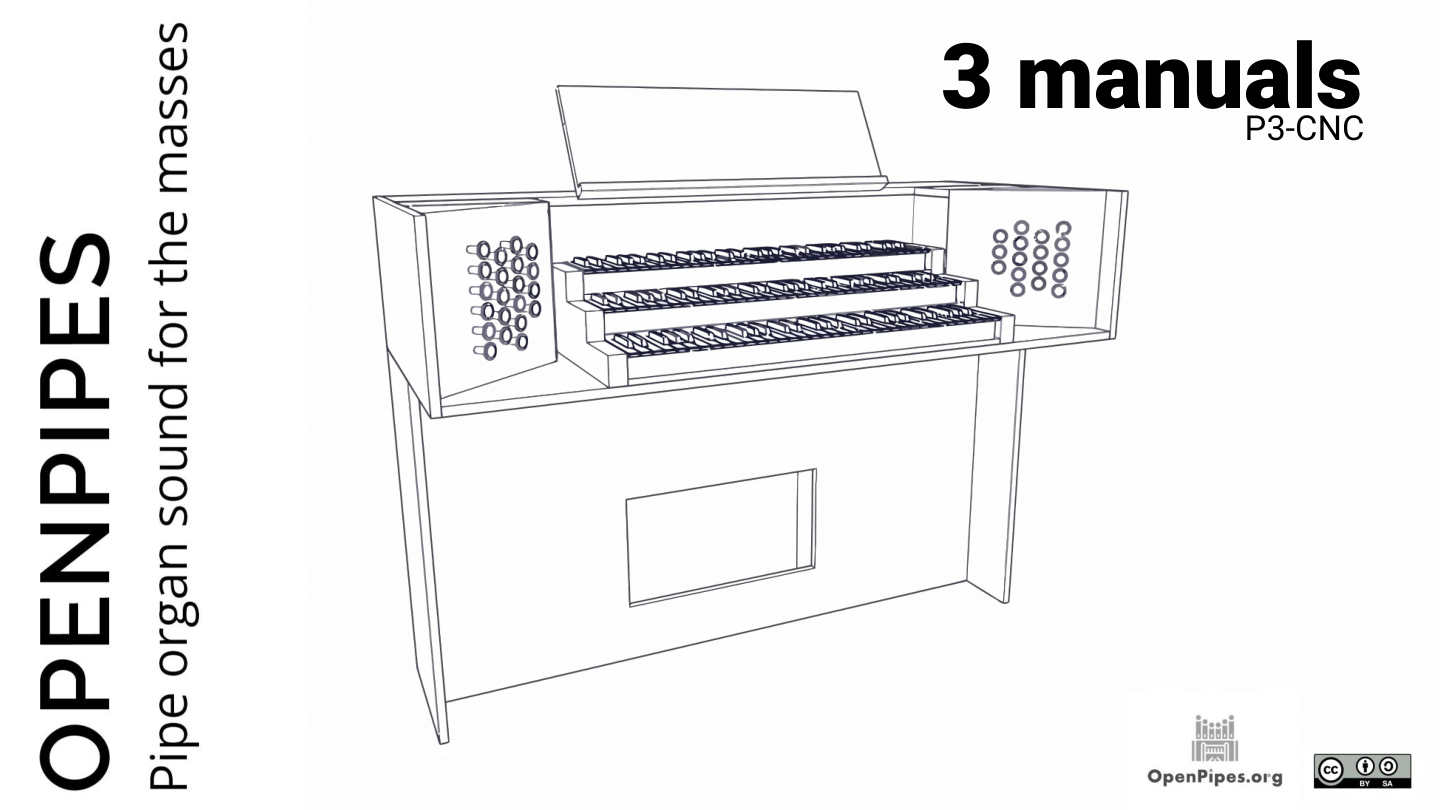

3 Manuals (P3-CNC)
Three-manual grand console. The complete experience with full pedalboard, rocker stops, thumb pistons, and expression pedals.
View plan →
2 Manuals Small (P2s-CNC)
Compact two-manual console that fits in smaller spaces while retaining a complete set of controls. Perfect for home studios and apartments.
View plan →What’s Included
Each plan package contains:
- Technical drawings — Orthographic views (front, back, top, sides) with full dimensions
- Cutting list — Every board specified with width, height, and thickness
- Assembly guide — Step-by-step construction sequence
- Hardware mounting points — Pre-planned locations for Pipe2C modules, keyboards, and expression pedals
All plans are provided as free PDF downloads, compatible with most CAD software and CNC machines.
